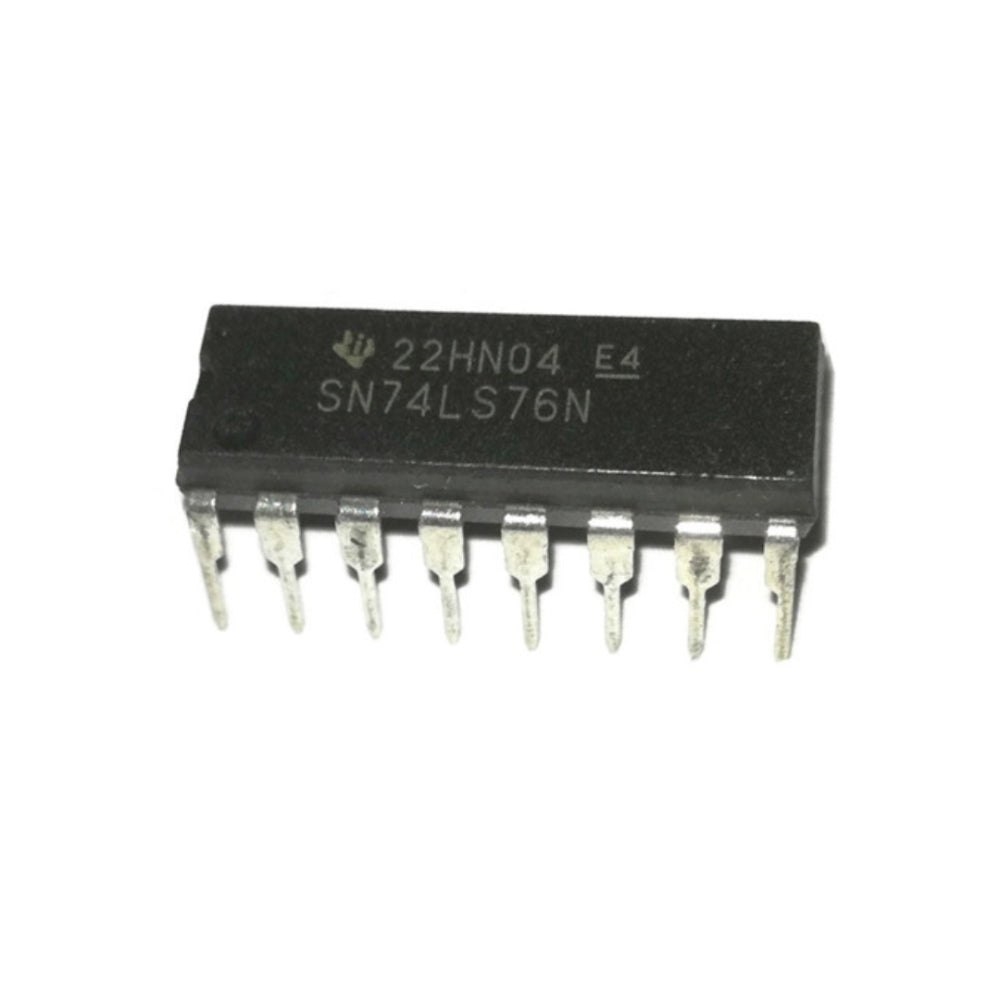

74LS76 Dual JK Flip-Flop with Set and Clear IC

74LS76 offers individual J, K, Clock Pulse, Direct Set and Direct Clear inputs. These dual flip-flops are designed so that when the clock goes HIGH, the inputs are enabled and data will be accepted. The Logic Level of the J and K inputs will perform according to the Truth Table as long as minimum set-up times are observed. Input data is transferred to the outputs on the HIGH-to-LOW clock transitions.

Features:-

• Two Individual Flip-Flops with J,K Clock, Set and Clear Inputs

• Input Data is Transferred to the Outputs on HIGH-LOW Clock Transition

• Fast Switching Speed

• Operating Temperature up to 70°C
