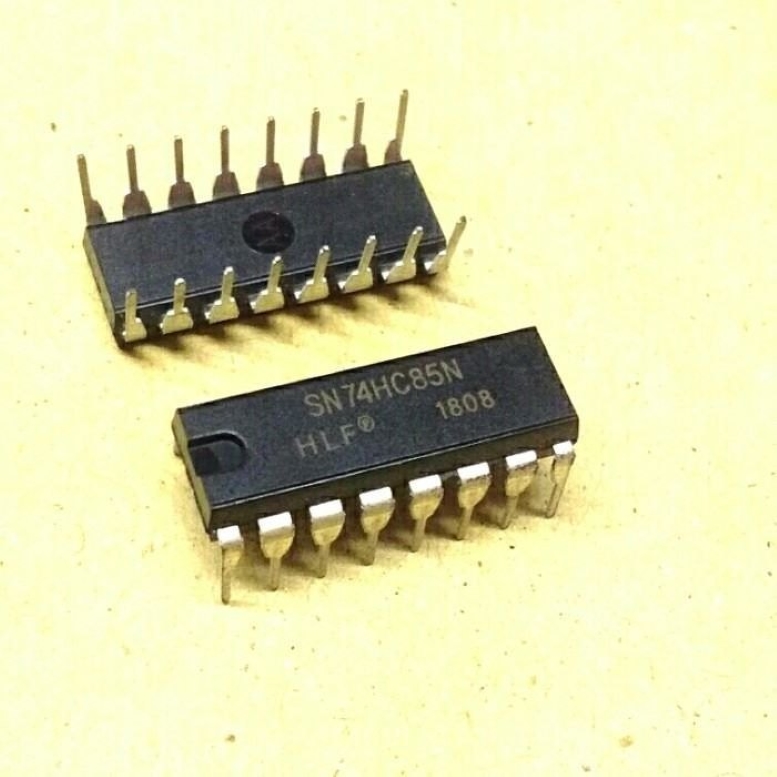

74HC85 4-bit Magnitude Comparator IC

74HC85 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC85 are 4-bit magnitude comparators that can be expanded to almost any length. They perform comparison of two 4-bit binary, BCD or other monotonic codes and present the three possible magnitude results at the outputs (QA>B, QA=B and QAB, IA=B and IAB = = LOW and IA=B = HIGH. For words greater than 4-bits, units can be cascaded by connecting outputs QAΒ and QA=B to the corresponding inputs of the significant comparator.

Features:-

• Serial or parallel expansion without extra gating

• Magnitude comparison of any binary words

• Output capability: standard
