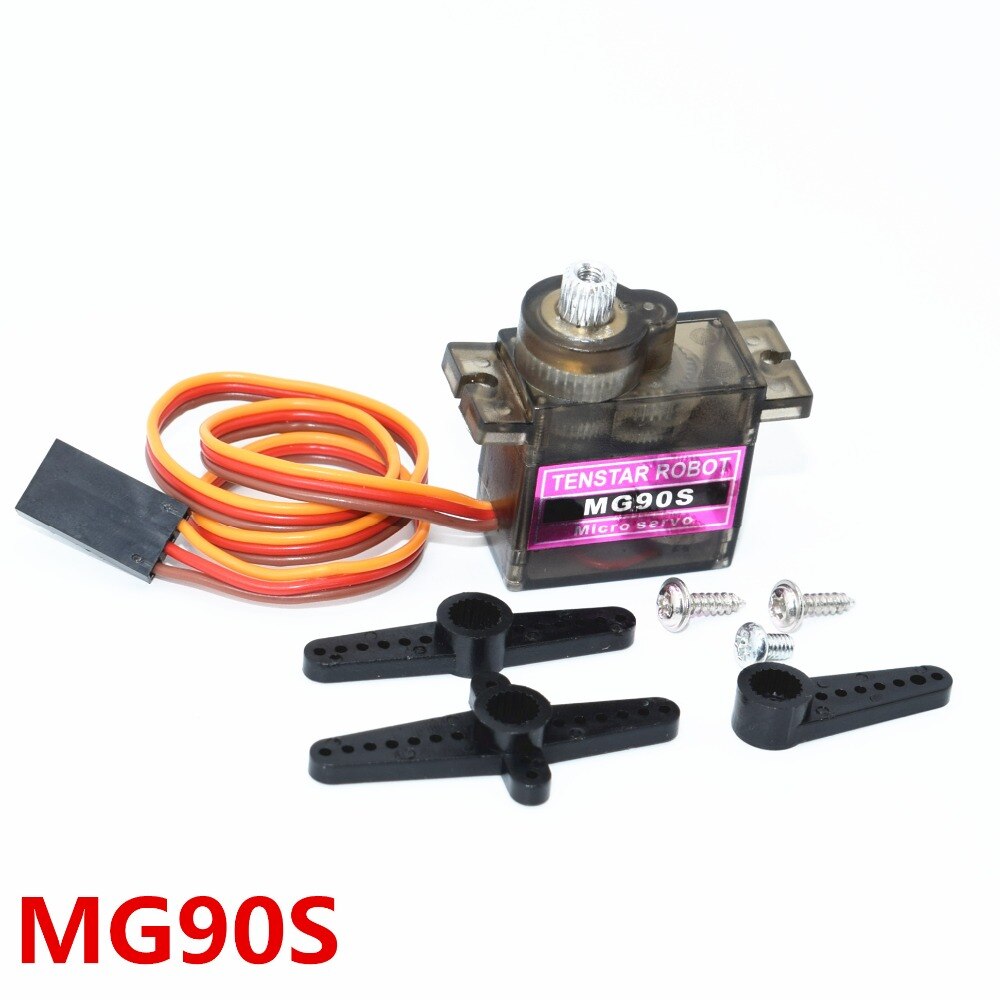

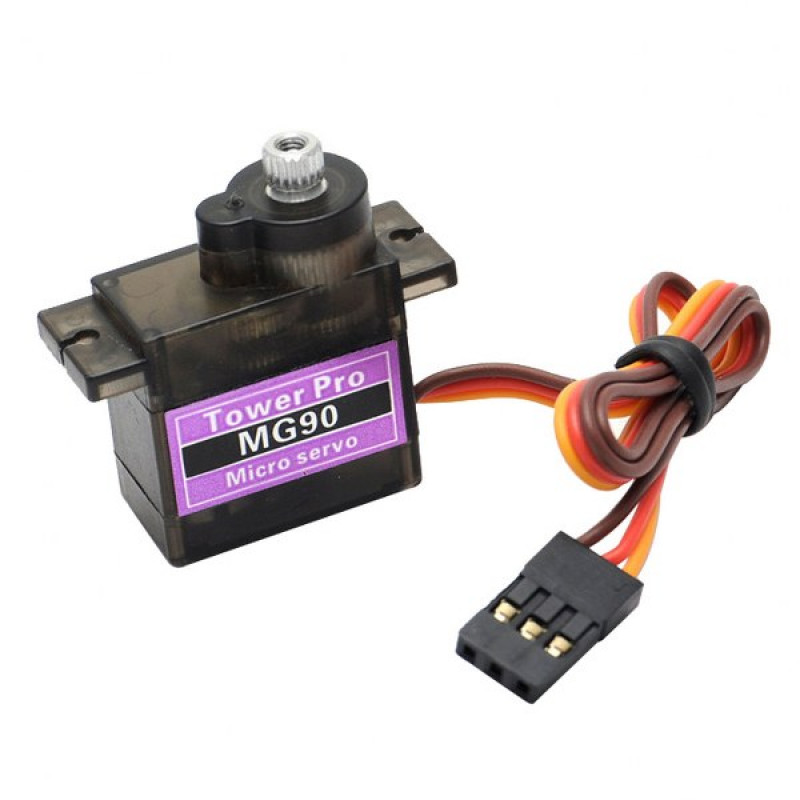

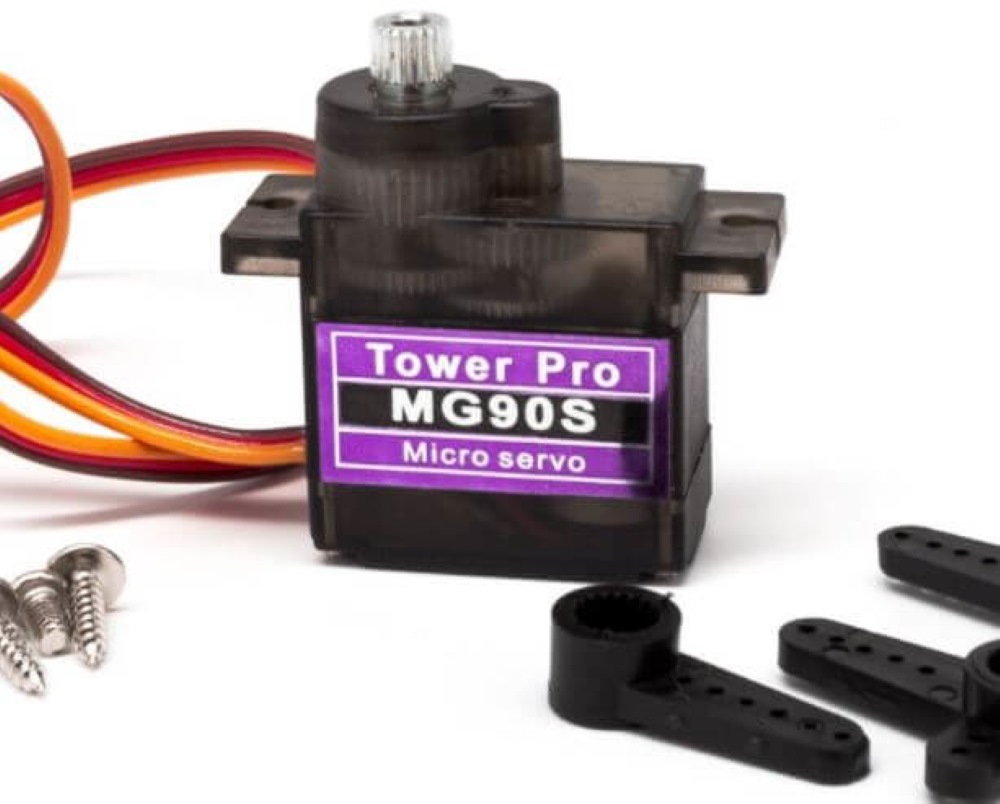

Tower Pro MG90S Servo Motor

Tower pro MG90S Servo is 180° rotation servo. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists.

They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Wire Description:-

• RED – Positive
• Brown – Negative
• Orange – Signal

Specification :-

• Modulation:     Analog
• Torque:

– 4.8V: 2.20 kg-cm
– 6.0V: 2.50 kg-cm

• Speed:     4.8V: 0.11 sec/60°
• 6.0V:   0.10 sec/60°
• Weight:     0.49 oz (14.0 g)
• Dimensions:     Length:0.91 in (23.1 mm)
• Width:   0.48 in (12.2 mm)
• Height:  1.14 in (29.0 mm)
• Gear Type:     Metal
• Rotation/Support:     Dual Bearings
• Rotational Range:     180°
• Pulse Cycle:     20 ms
• Pulse Width:     400-2400 µs
