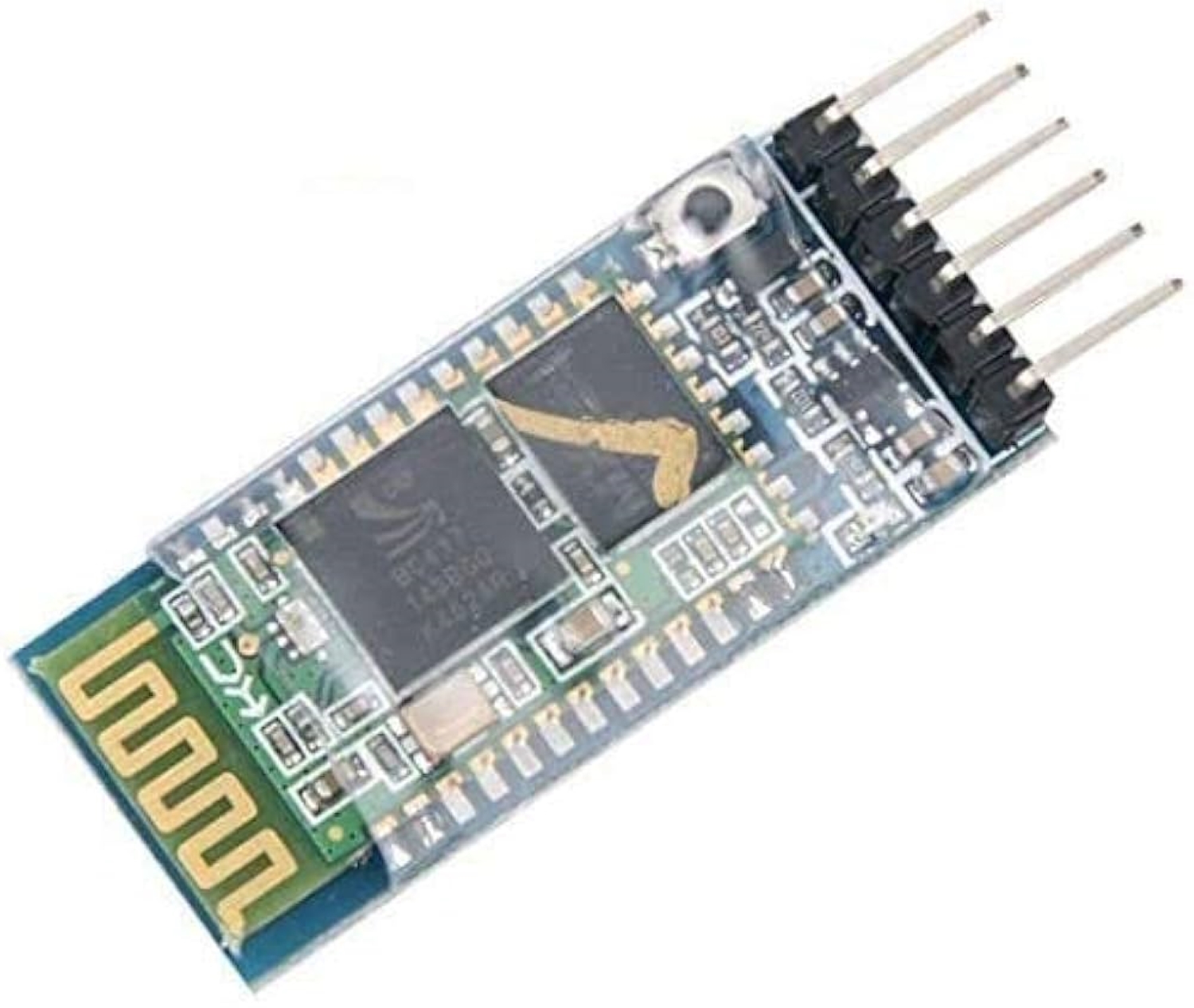

HC-05 Bluetooth Module with TTL Output

HC-05 Specifications:-

• Profiles: Bluetooth serial port Profile
• Bluetooth protocol: Bluetooth Specification v2.0+EDR
• Frequency: 2.4GHz ISM band
• Modulation: GFSK(Gaussian Frequency Shift Keying)
• Emission power: ≤4dBm, Class 2
• Sensitivity: ≤-84dBm at 0.1% BER
• Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
• Security: Authentication and encryption
• Power supply: +3.3VDC 50mA
• Working temperature: -20 ~ +75Centigrade
• Dimension: 26.9mm x 13mm x 2.2 mm

HC-05 Applications:-

• Embedded Projects
• Industrial Applications
• Computer and portable Devices
• GPS receiver
