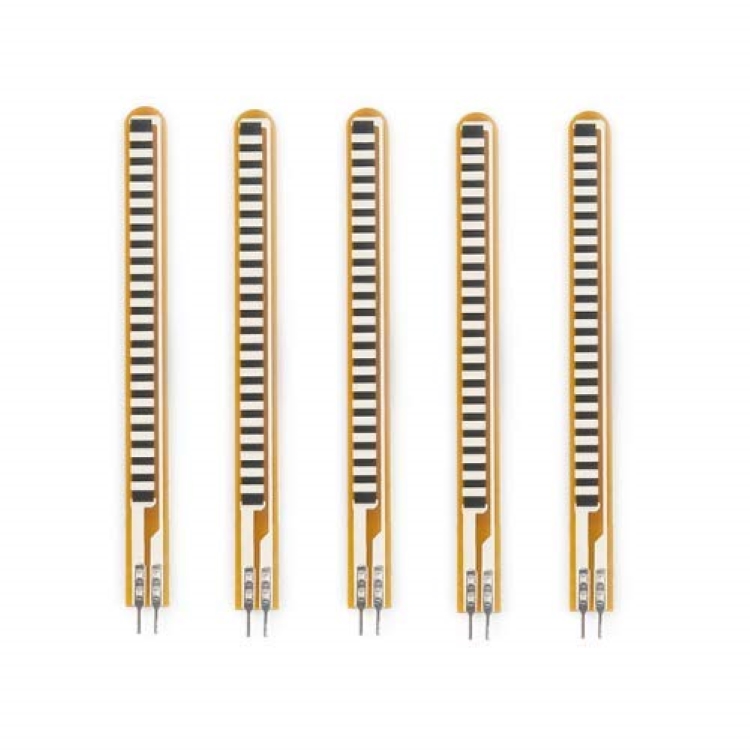

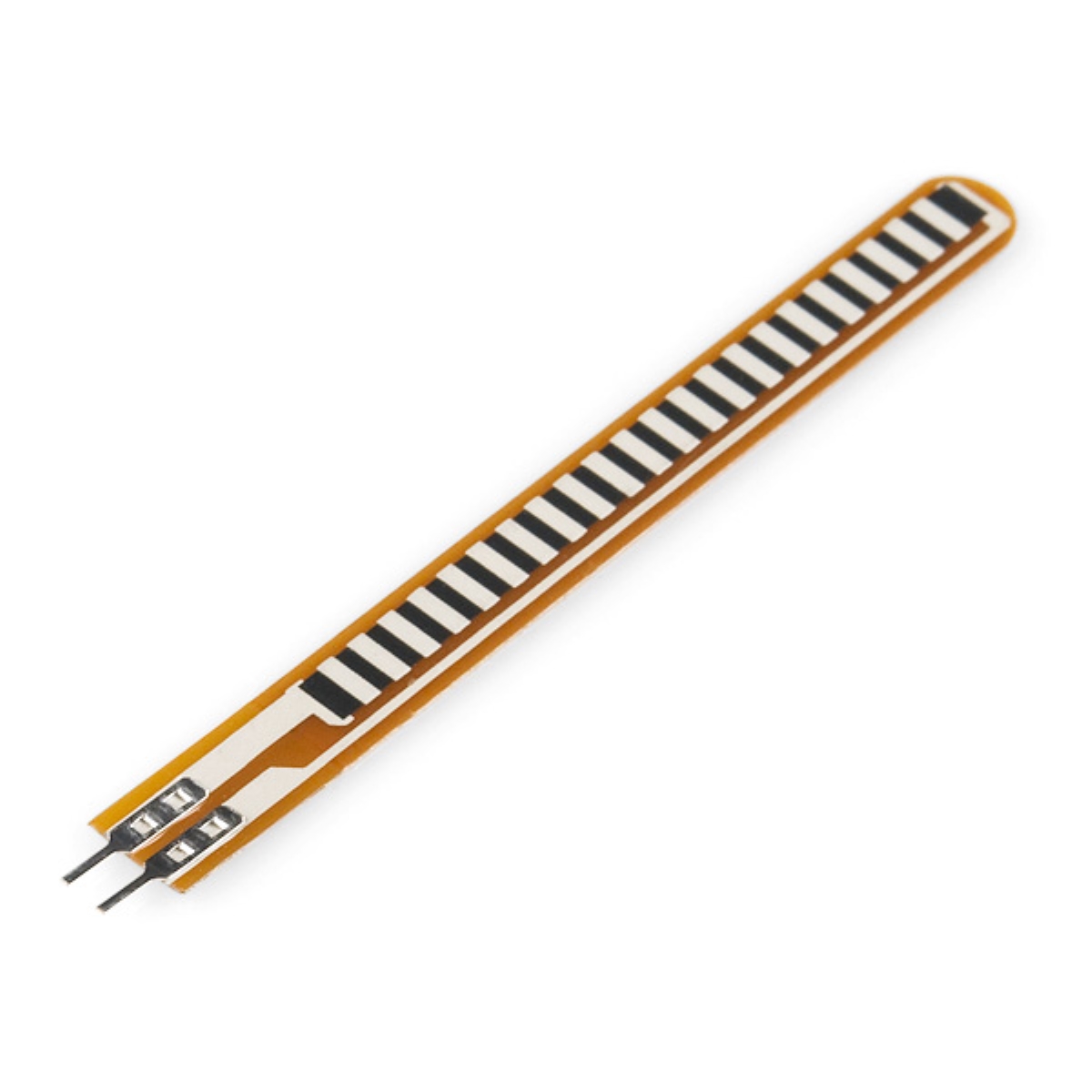

Flex Sensor – 2.2 inch

Flex Sensors are commonly used in Robotic Gloves and other Robotic Control application. It can be used to analyze how much a material is being bent. This flex sensor is 2.2 inch long and has two output leads which acts like a variable resistor. That is the resistance between two pins change based on how much the sensor is bent.  It is commonly used along with another resistor to build a voltage divider circuit and then obtain a variable voltage based on the change in resistance of the sensor.

Features:-

• Angle Displacement Measurement
• Bends and Flexes physically with motion device
• Simple Construction

Applications:-

• Angle Displacement Measurement
• Bends and Flexes physically with motion device
• Possible Uses
• Robotics
• Gaming (Virtual Motion)
• Medical Devices
• Computer Peripherals
• Musical Instruments
• Physical Therapy
• Simple Construction
• Low Profile

Specifications:-

• Flat Resistance: 25K Ohms
• Life Cycle: >1 million
• Flex Length : 2.2 inch
• Temperature Range: -35°C to +80°C
• Resistance Tolerance: ±30%
• Bend Resistance Range: 45K to 125K Ohms (depending on bend radius)
• Power Rating : 0.50 Watts continuous, 1 Watt Peak
