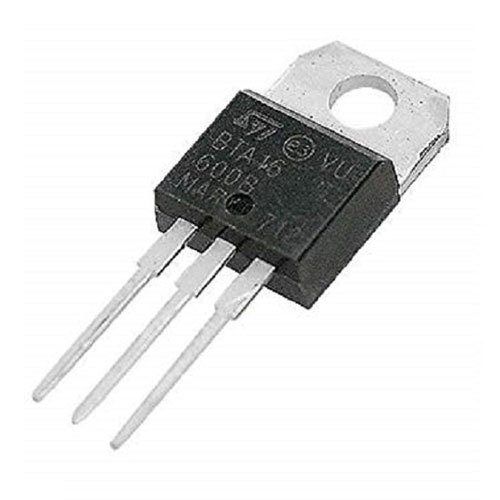

BTA16 600V – 16A Triac

The BTA16 – 600V triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor speed controllers.

The snubberless versions (BTA series) are specially recommended for use on inductive loads, Thanks to their high commutation performances. By using an internal ceramic pad, The BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.

Specifications:-

• Repetitive peak off-state voltages : 600V
• peak off-state reverse voltages : 600V
• RMS on-state current : 16.0A
• Non-repetitive peak on-state current : 168 A
• Max. Operating Junction Temperature : 110 oC
• Storage Temperature : -45~150 oC
