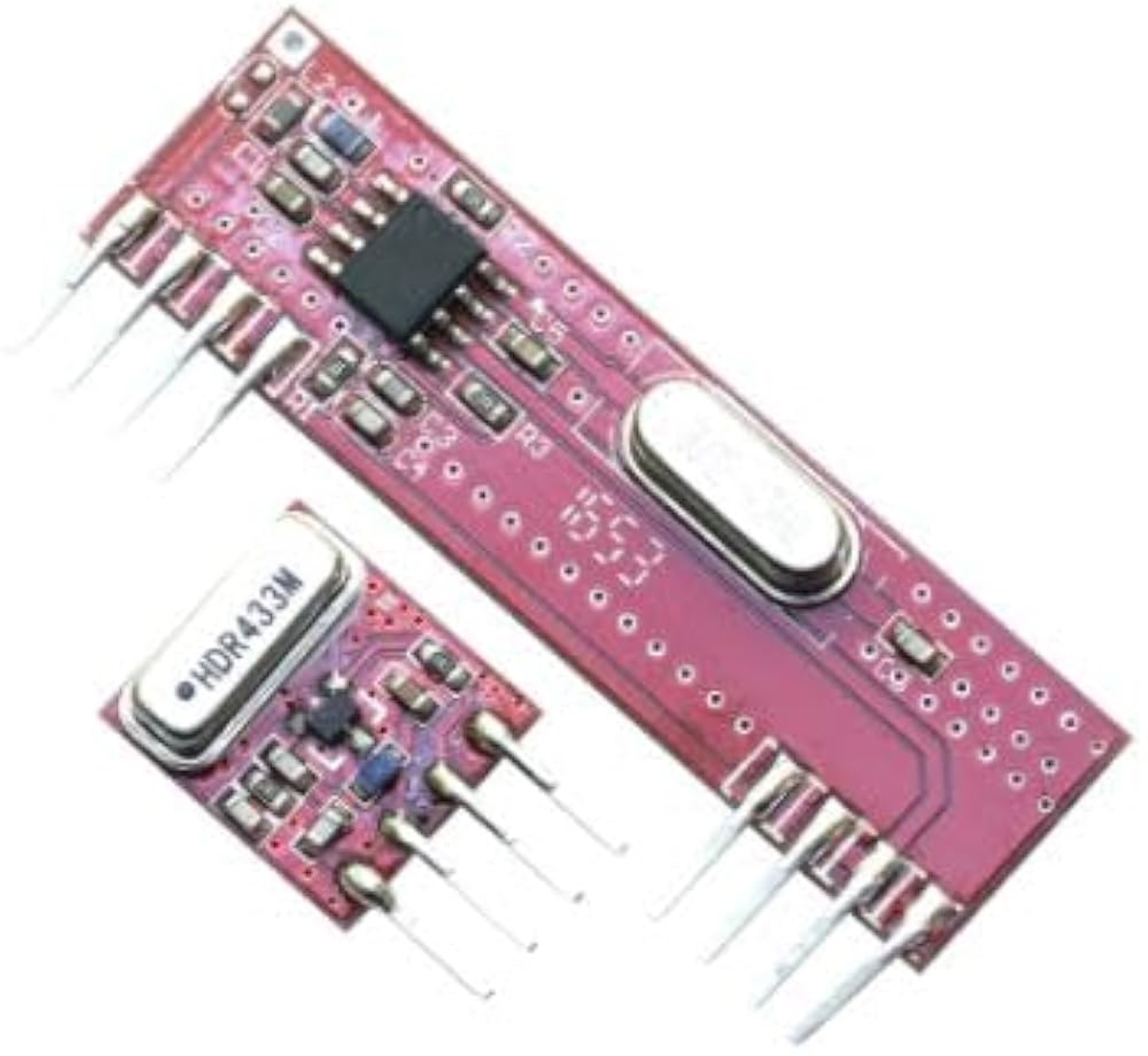

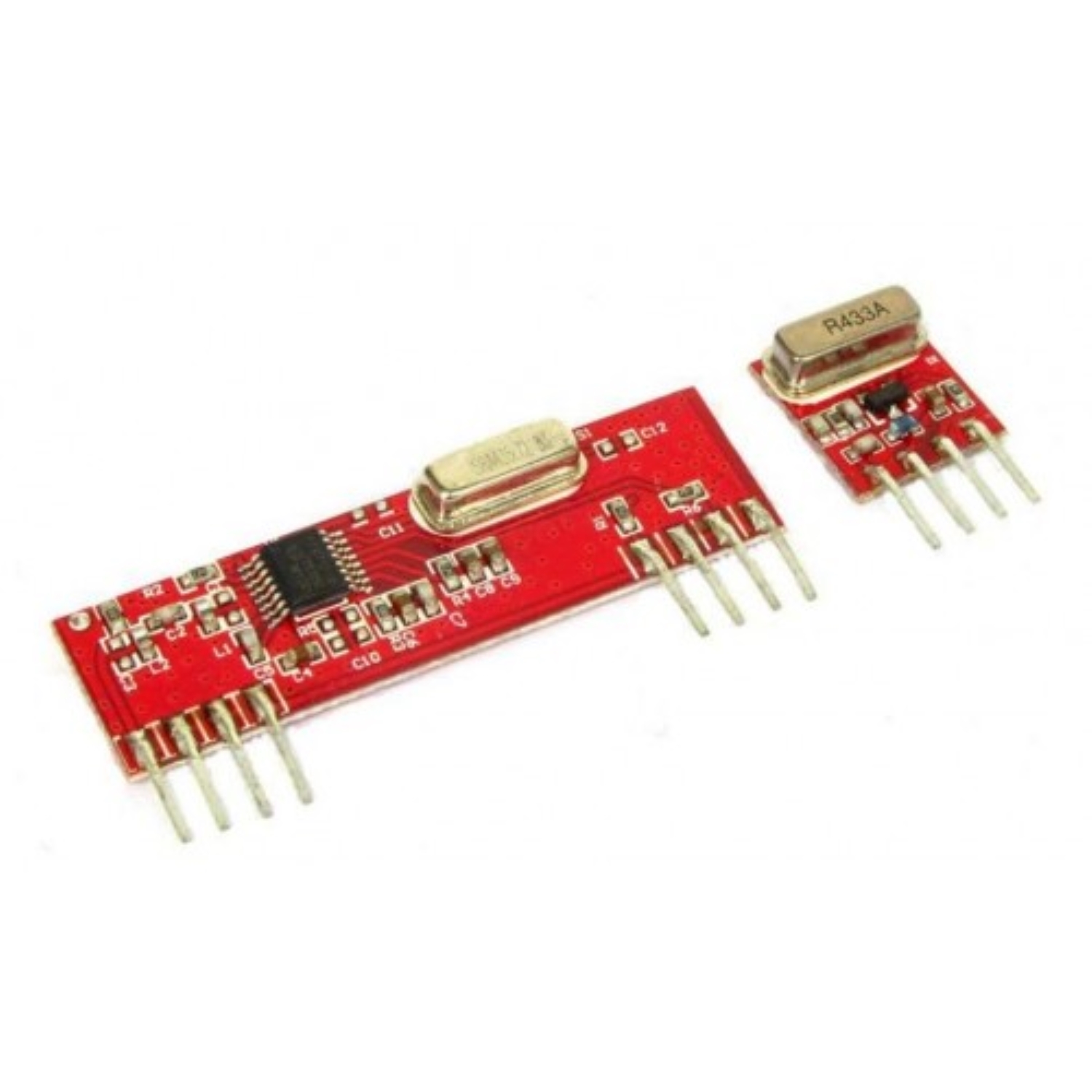

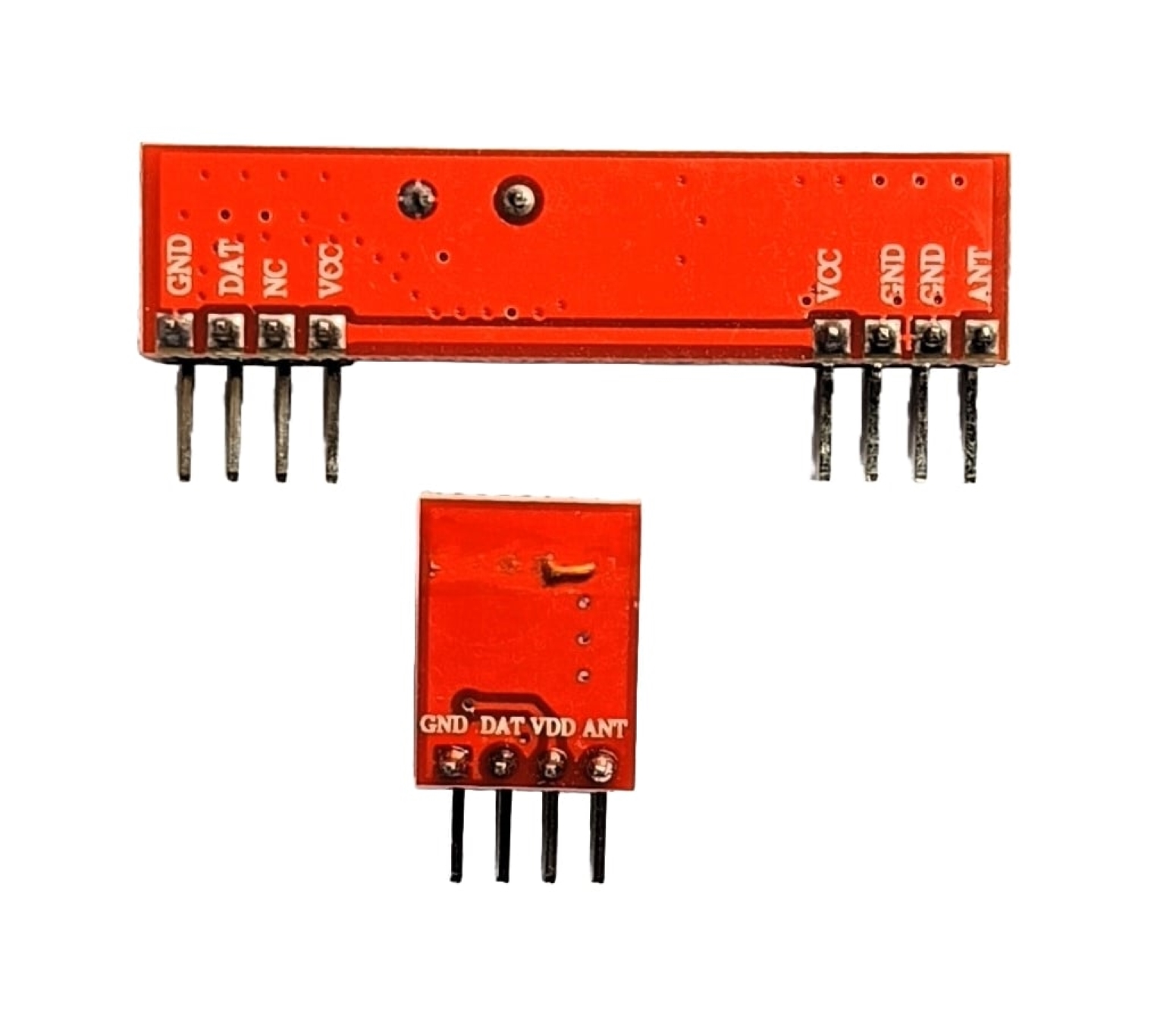

433MHz RF Transmitter Receiver Wireless Module

RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source.

The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost.

The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing.

Specifications of 433MHz RF Transmitter Receiver Wireless Module:-

• Range in open space(Standard Conditions) : 100 Meters
• RX Receiver Frequency : 433 MHz
• RX Typical Sensitivity : 105 Dbm
• RX Supply Current : 3.5 mA
• RX IF Frequency : 1MHz
• RX Operating Voltage : 5V
• TX Frequency Range : 433.92 MHz
• TX Supply Voltage : 3V ~ 6V
• TX Out Put Power : 4 ~ 12 Dbm

Features of 433MHz RF Transmitter Receiver Wireless Module:-

• Low Power Consumption
• Easy For RF based Application
• Complete Radio Transmitter
• Transmit Range Up To 50m
• CMOS / TTL Input
• No Adjustable Components
• Very Stable Operating Frequency
• Low Current Consumption (Typ 11mA)
• Wide Operating Voltage
• ASK Modulation

Applications 433MHz RF Transmitter Receiver Wireless Module:-

• Remote Controls
• Automation System
• Wireless Security System
• Sensor Reporting
• Car Security System
• Remote Keyless Entry
